A collection of various 32x32 tileset templates, included as an aseprite file and pngs. Includes Wang, Blob, and gms2 tilesets, edited for ease of use!

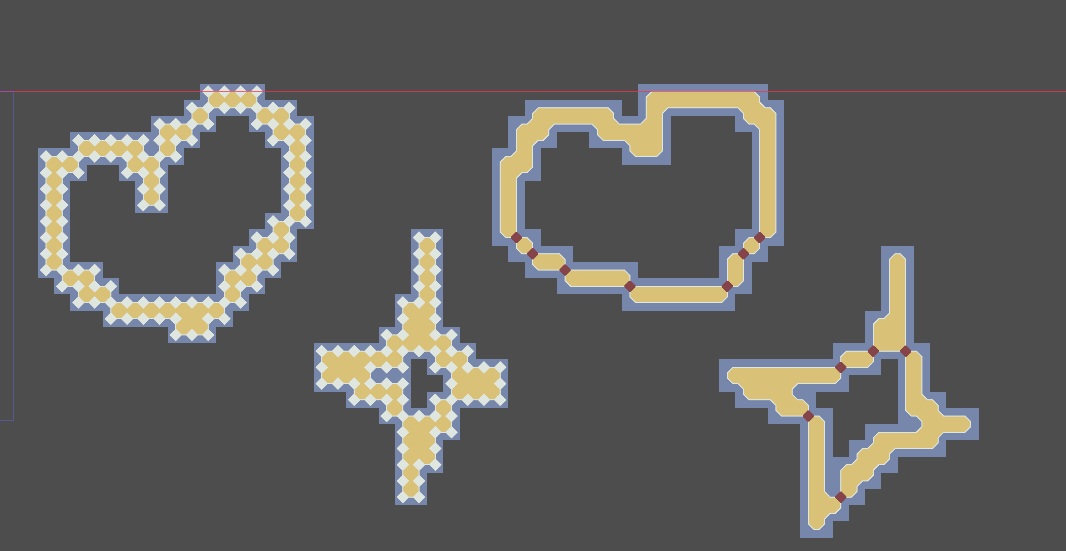

Edits include having only one colour per terrain, marking duplicate tiles, and making "connected" versions that I find make mistakes more obvious when checking if autotile/terrain rules were properly set up. See connected.png for a side by side comparison.

Huge shout out to all the lovely people who figured out and then shared the math and layouts! You are some of my favourite people on the internet, and have fueled a two year hyperfixation.

Full list

    Blob 7x7
    Blob 8x6
    Blob Fish
    Blob Squid
    Blob Tarantula
    -
    GMS2 16
    GMS2 47
    -
    Wang S-E2

    Wang S-E3
    Wang S-E3 Recursive

    Wang S-E4

    Wang S-V2
    Wang S-V2 Connected

    Wang S-V3 Recursive
    Wang S-V3 Recursive Connected

    Wang S-V3 Symmetrical
    Wang S-V3 Symmetrical Connected

    Wang S-V4
    Wang S-V4 Connected

Notes

• I have taken the liberty of nicknaming some of the blob arrangements for easier reference and funsies. If anyone comes up with better names please let me know!
• For the Wang tiles, I am using Boris the Brave's naming scheme, which can be found here. https://www.boristhebrave.com/2021/11/14/classification-of-tilesets/
• The game maker studio templates' first tile is crossed out. This is normal and intentional, as gms2 will not allow you to use that cell's tile for autotiles. Tiles are also in order for easy autotile settup.
• The colour #dfe6e0 (very light teal, looks white), does not represent a terrain and can be removed/ignored without issues
• "Connected" layouts have the same layout as their non-connected counterpart.
• In connected layouts, red losanges are placed where two different colours would overlap.
• Suggestions and edits are more than welcome!

Credits

    Guy cr31
    https://opengameart.org/users/guy
    https://www.boristhebrave.com/permanent/24/06/cr31/stagecast/wang/intro....
    https://opengameart.org/content/wang-3-edge-walkways-tileset
    My source for all of the Wang tilesets!

    Caeles
    https://opengameart.org/users/caeles
    https://opengameart.org/content/seamless-tileset-template
    https://opengameart.org/content/seamless-tileset-template-ii
    My source for the blob tilesets. The "squid" and "fish" versions, as well as a few others can be found in the comments! They're present as ASCII art, and most have been drawn out by Guy cr31.

    Boris the Brave
    https://www.boristhebrave.com/
    https://www.boristhebrave.com/2021/11/14/classification-of-tilesets/
    My source for the classification system.

    Mechanical Rage
    https://opengameart.org/users/mechanicalrage
    https://opengameart.org/content/gamemaker-autotile-templates
    My source for the gms2 templates, saved me from down scaling pngs/recreating them by hand.

    Acid Burritos
    https://lospec.com/acid-burritos
    https://lospec.com/palette-list/grimbo
    My source for the "Grimbo" colour palette
